Solution

Backed by civil engineers, marine contractors, project managers, government and state officials. A lack of erosion control is a vital issue among a seawall or bulkhead design.  One common problem is wall movement in addition to tieback/whaler tension, toe failure, horizontal cracking and panel seperation.

Weep holes are created to relieve the hydrostatic and hydrodynamic water pressure from behind the wall without causing soil loss and/or sinkholes.   It's very important to have access to the erosion control fabric from behind the wall that inevitably will clog and/or deteriorate over time if not properly maintained.

The key component of the flush-mount dewatering JET Filter System is the ability to remove the inner filter cartridge from the front face of any seawall design which can be maintained to get the most life expectancy of any wall installed

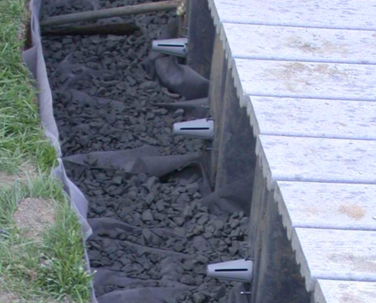

The weep hole systems can be easily installed on any new or existing seawall or bulkhead

2 1/2" Dia ASTM & SS Steel

ASTM A-36 Hot Rolled Steel Housing & 316 Stainless Steel or Powder Coated Black Face Plate.  ASTM A-36 Hot Rolled Steel 3/8" Cage 316 Stainless Steel 16 Guage.  Filter Media Mirafli Filterweave 300.  Mounting Accessories included

2 1/2" Dia ABS

ABS UV Protected

Filter Media Mirafli Filterweave 300.  Available in 4 different colors. Gray, Slate, Clay, and Brown

Mounting Accessories Included

Available in Diameters.

4" & 6" Dia ASTM & SS Steel

ASTM A-36 Hot rolled Steel Housing & 316 Stainless Steel 6" Diameter X 9.4" length.  ASTM -36 Hot Rolled Steel Housing & 316 Stainless Steel.  Both Face Plates can be Powder Coated Black.  Filter Media Mirafli Filterweave 300.  Mounting accessories included
